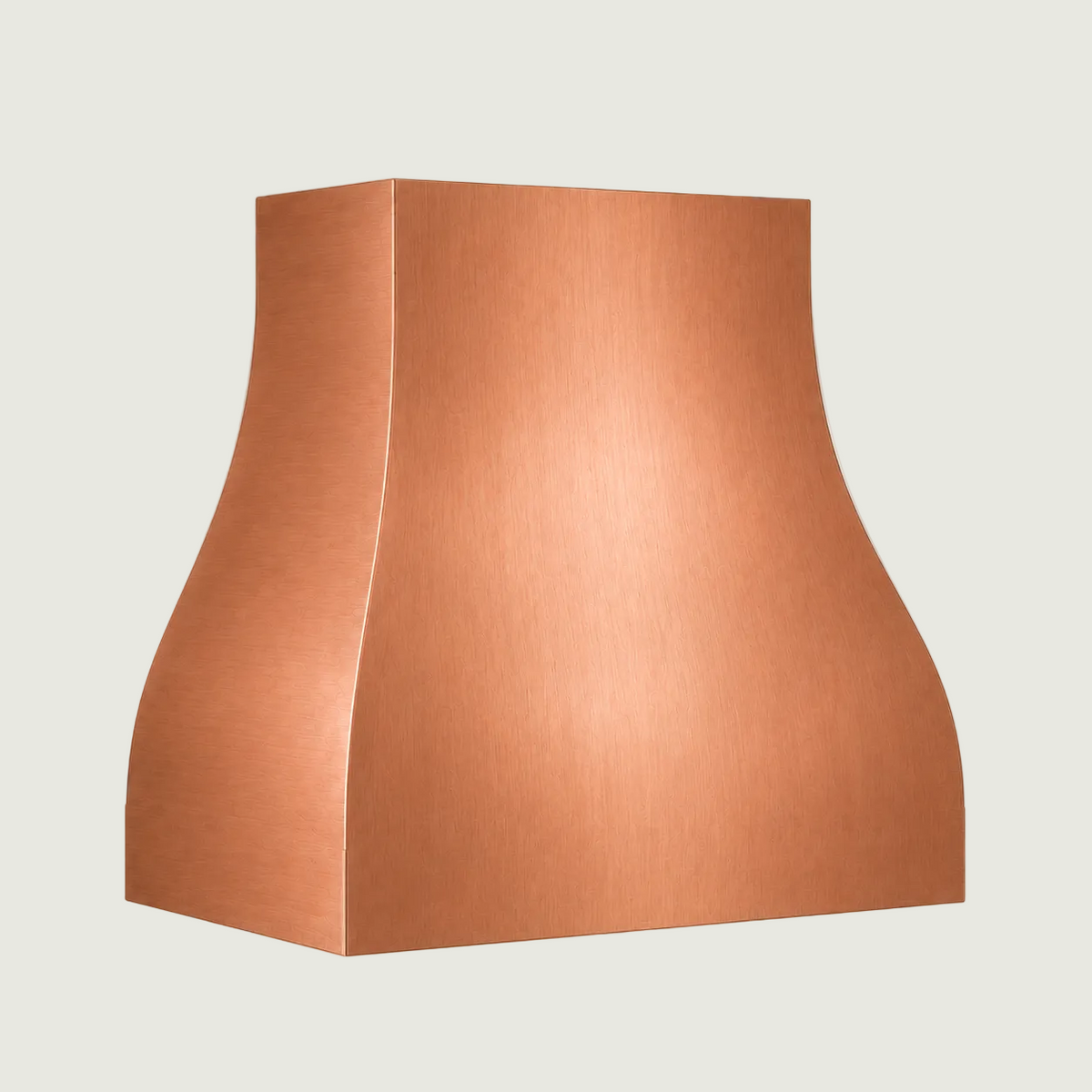

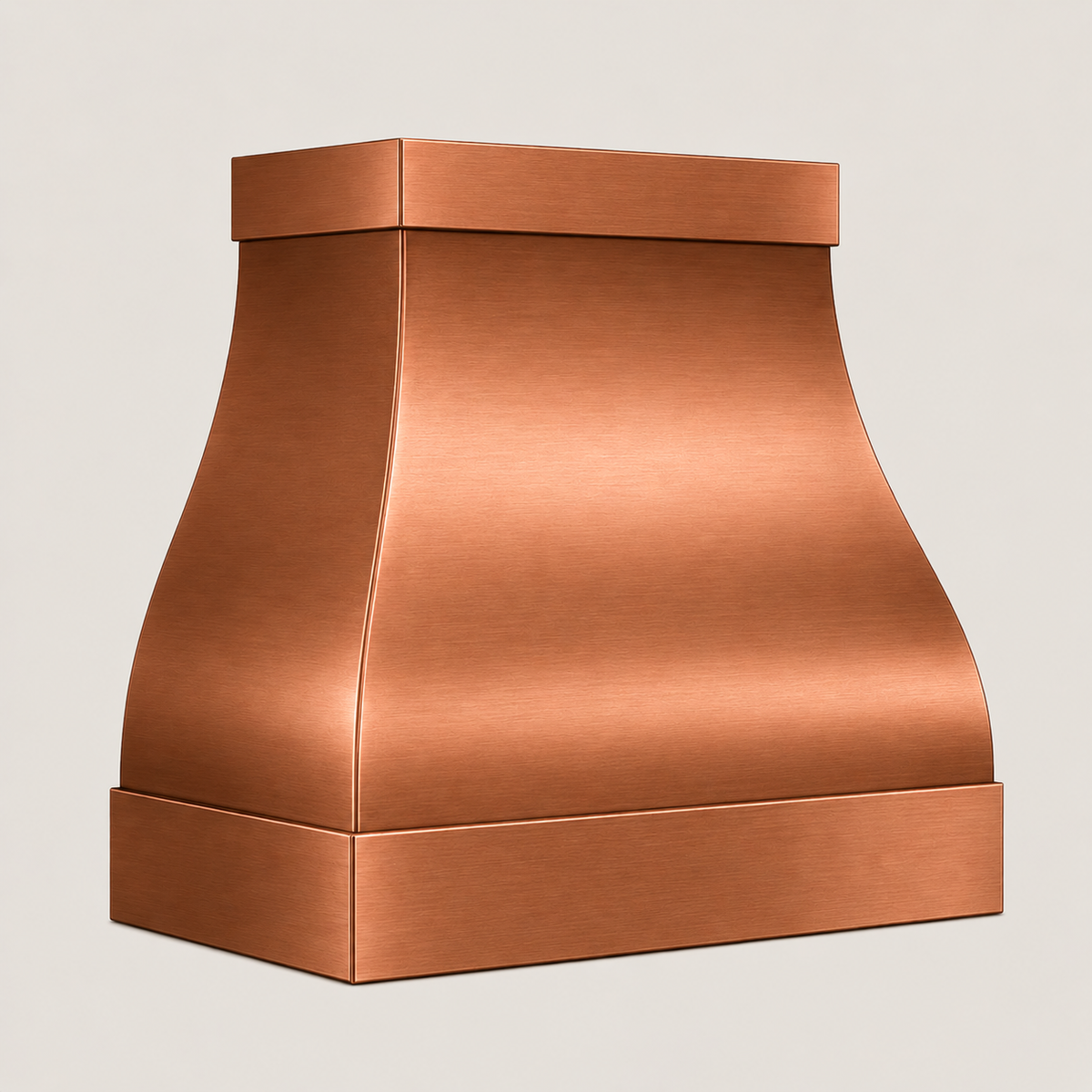

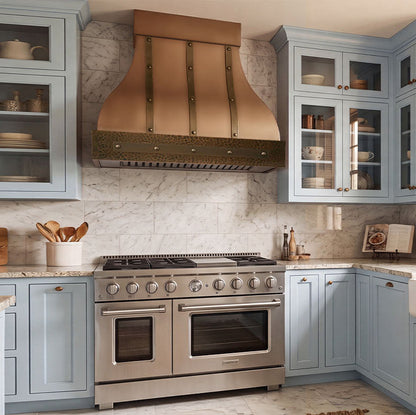

NAUXUS - Custom Copper Bell Shape Range Hood - CHBE01

Create a distinctive statement piece for your kitchen with a handcrafted NAUXUS custom range hood insert, available in multiple widths, depths, and heights to accommodate different kitchen layouts. Crafted from 16-gauge solid copper with 99.9% pure virgin copper, this customizable range hood combines artisan craftsmanship with powerful ventilation, quiet operation, and practical maintenance features.

• Custom widths available from 30" to 60"
• Custom depths available from 21" to 27"
• Custom heights available from 24" to 60"
• Handcrafted from 16-gauge solid copper
• 99.9% pure virgin copper, not recycled
• Maximum 1200 CFM airflow for 42"/48"/54"/60" models
• Maximum 600 CFM airflow for 30"/36" models
• Ultra-quiet operation below 65 dB
• Time-delay turn-off function
• Dishwasher-safe baffle filters
• Surface-protective coating helps protect customized finishes
• cETL certified
• Lifetime warranty on copper hood covers
• 3-year limited parts warranty

Key Features

• Custom Range Hood Sizes: Available in 30", 36", 42", 48", 54", and 60" widths, with depths from 21" to 27" and heights from 24" to 60" to accommodate different kitchen layouts and space requirements.
• Handcrafted Solid Copper: Constructed from 16-gauge solid copper made from 99.9% pure virgin copper rather than recycled copper.
• Custom Decorative Design: The decorative apron can be handmade with different patterns and textures, including Smooth, Light Hammered, and Beehive Hammered options.
• Custom Finishes: Available finish options include Copper, Natural Copper, Oil Rubbed Bronze, and Fire Hood Hammered.

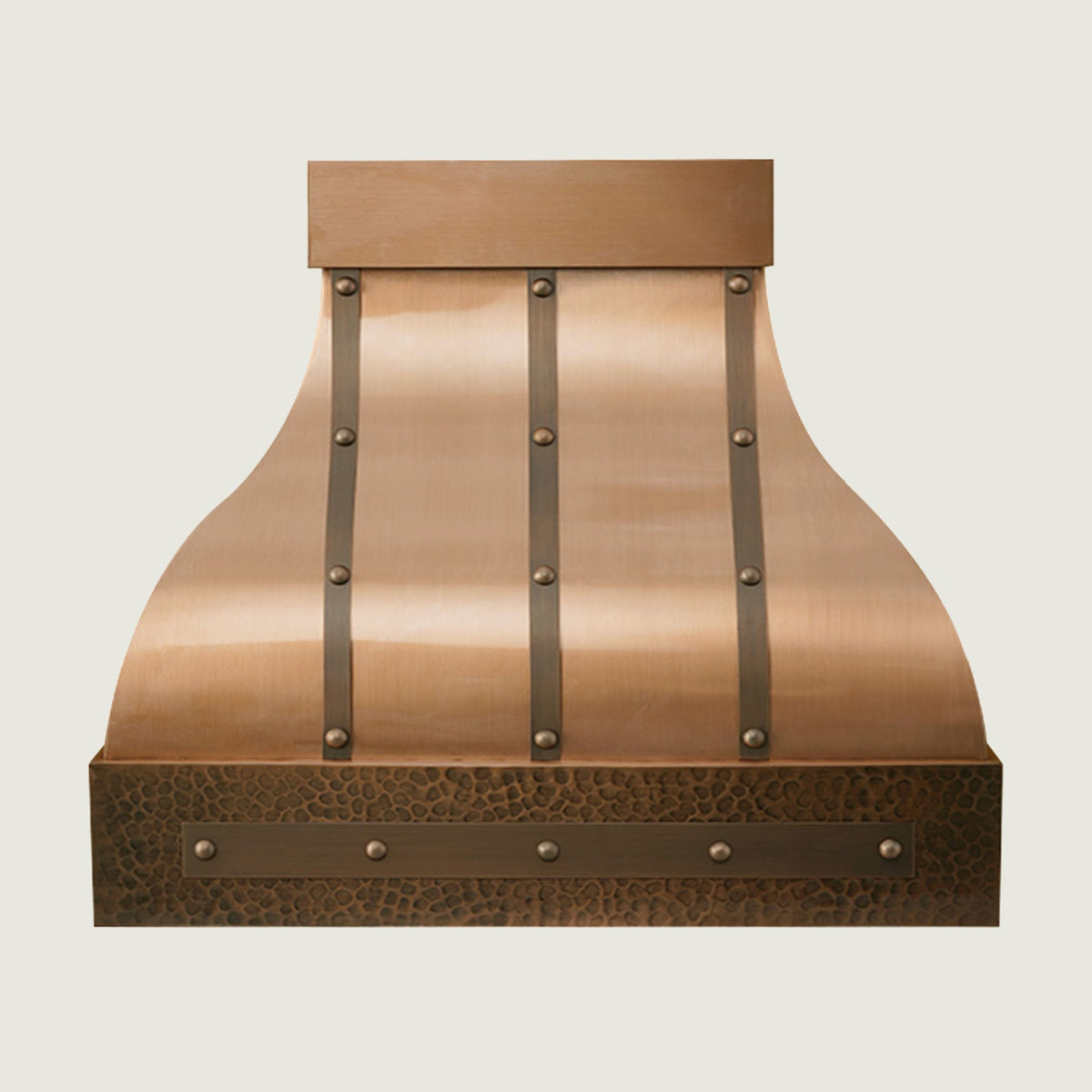

• Custom Decorative Details: The hood can feature decorative trims, apron, straps, and rivets for a personalized kitchen design.
• Powerful Airflow: The copper ball-bearing motor provides maximum airflow of 1200 CFM for 42", 48", 54", and 60" models, and 600 CFM for 30" and 36" models.
• Quiet Operation: Designed for ultra-quiet operation below 65 dB.
• Time-Delay Turn-Off: The time-delay turn-off function allows continued operation for discreet removal of cooking odors.
• Protective Surface Coating: The surface-protective coating helps protect customized finishes against oxidation, fingerprints, and stains.
• Dishwasher-Safe Baffle Filters: Baffle filters can be cleaned in the dishwasher for easier maintenance.
• Installation Support: A detailed instruction manual and professional service team are provided to assist with installation.
• CAD Drawing Approval: CAD drawings are provided for customer approval after an order is received.
• Pre-Shipment Confirmation: Pictures of the hood are sent for confirmation before shipment.

Specifications & Dimensions

• Brand: NAUXUS
• Product Type: Custom Range Hood Insert
• Available Widths: 30", 36", 42", 48", 54", and 60"
• Available Depths: 21", 22", 24", and 27"
• Available Heights: 24"–60"
• Construction: 16-gauge solid copper
• Copper Purity: 99.9% pure virgin copper
• Motor: Copper ball-bearing motor
• Maximum Airflow: 1200 CFM for 42"/48"/54"/60" models
• Maximum Airflow: 600 CFM for 30"/36" models
• Noise Level: Below 65 dB
• Filter Type: Baffle filters
• Filter Cleaning: Dishwasher-safe
• Certification: cETL certified
• Warranty: Lifetime warranty on copper hood covers
• Parts Warranty: 3-year limited parts warranty

Care Instructions: Clean daily with mild soap and warm water. Avoid copper polish, abrasive products, and acidic substances.
